1. Description of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
150mm professional grade general purpose diamond blade for fast cutting on a various concrete, masonry and construction materials. They are designed for heavy saw cutters who want to cut different materials without having to change blade. These saw blades feature undercut protection for use on asphalt and green concrete. The Profession diamond Blade is a good choice for landscaping contractors, general contractors, utilities, municipalities, sewer and water departments and rental companies.
2. Feature of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
1. Well exported to America, European, Asia, Africa, Australia market.
2. Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.
3. Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.
4. Unercut protection segments provide longer lifetime.
5. 100% laser welding technology.
3. Specification of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
Diameter:150mm
Segment thickness:2.2mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 6" | 150 | 34 | 2.2 | 7 | 11 |
| 6" | 150 | 34 | 2.2 | 10 | 11 |
| 6" | 150 | 34 | 2.2 | 12 | 11 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
| 32" | 800 | 40 | 5.0 | 10/12/15 | 46 |

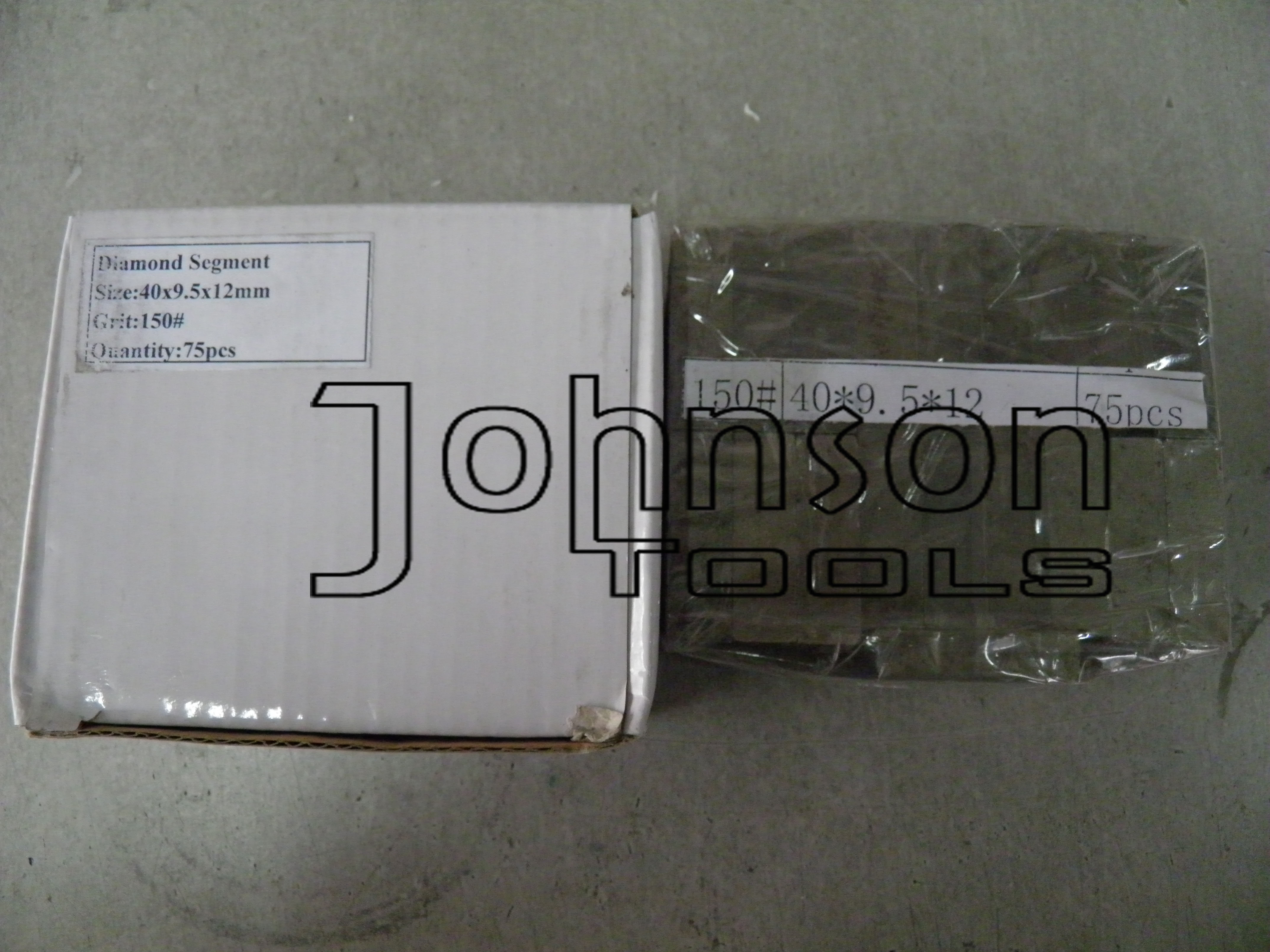

4. Packing and Shipping
Each laser saw blade is packed in white box, then 50-75pcs put in an export standard carton, gross weight per carton is limited within 12-17kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
